Mobile Universal Trailer Tester (MUTT) Electrical and Air Brake Tester

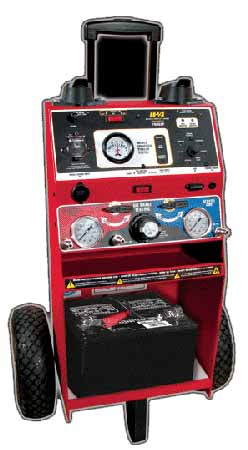

IPA-7900AP Mobile Universal Trailer Tester (MUTT) Electrical and Air Brake Tester
  • SKU: IPA-7900AP
  • Free Shipping!
  • A Professional Solution for
    Fleet Maintenance.
    Mobile Universal Trailer Tester
    is a diagnostic tool that tells
    you the condition of your
    trailer in less than 60 seconds.
    Battery Not Included.
    ELECTRICAL TESTING
    Indicator Lights: Auto-Cycle, Power Pulse, Cross, Open, Overloaded and
    Shorted Circuits
    Use with 4/5, 6, 7 Spade and 7 Round Pin Connectors
    On-Board Cable Tester
    AIR BRAKE TESTING
    Pulse Air to check Brake Operation with Remote
    Perform Leak Down Test on Service & Emergency Lines
    Observe Slacker Adjustment real time
    By utilizing a 12 volt car battery, a technician can now wheel out the tester to the trailer and
    power up all its lighting systems while diagnosing electrical problems.
    RF remote control allows complete testing from over 100 feet away. A technician is free to walk
    around any size trailer while in full control of the testing sequence.
    Features:
    Innovative adapters allow testing to be performed on any trailer in service
    in the USA.
    Uni-body Cart design on pneumatic tires with battery compartment and
    separate storage area.
    Wireless remote allows a tech to power circuits up to 100 ft from Tester.
    Includes detachable 5 ft 7-way Round pin cable.
    Ground Integrity Indicator takes the guess work out of diagnostics.
    10 ft chassis ground cable allows testing of trailers solely grounded by
    the hitch.
    Manual mode select and Auto Cycle Feature which continuously powers
    up and switches to EACH circuit for 5 seconds to cut time with trailer
    inspection.
    Crossed circuit indication warns operator of the unselected circuit being
    powered by the selected circuit.
    Fused circuit and reverse polarity protection with warning prevents
    damage to unit.
    Power the trailer by using an automotive battery (not included).
    Capable of handling loads up to 20 amps or as low as .1 amp (LED
    Systems).
    Battery Integrity indicator warns of low battery supply Open Circuit Indicator.
    Backlit amp meter reads up to 30 amps.
    Overload Protection.
    Made in the USA.

    IPA 7900AP
  • Price:  $1,297.00
  • Weight:  40.00
