Midtronics Hybrid Battery System Analyzer Tester

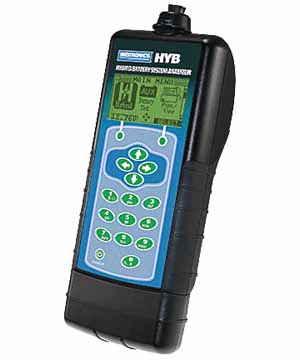

MDT-HYB1000 Midtronics Hybrid Battery System Analyzer Tester
  • Part Number: MDT-HYB1000
  • Introducing the HYB 1000 Hybrid Battery System Analyzer from Midtronics. The HYB provides technicians with the capability to perform battery service maintenance testing on several leading Hybrid vehicles. Simply connect the wireless convergence communication module to the vehicles on-board diagnostics port and follow the menu instructions on the HYB. The drive test is an interactive, menu-driven test that uses live vehicle sensor information while performing an accelerated drive test. The technician can see live results on the tester while performing the test, and print the results to an IR printer.

    Features:

    The following test functions are available:

    12 volt Auxiliary Battery Test
    DTC Code Reading
    DTC Code Reset
    Live Data Run Chart
    Drive Test

    The drive test provides the state of health (SOH) of the battery pack at the end of the test:

    Pack OK
    Pack needs Service low conductance
    Pack needs Service out of balance
    Corrosion or connection issues between cells
    Weak cells that can be replaced
    Includes a bar graph showing relative indication of pack SOH
    Indicates when battery pack service is needed

    Collected Data includes:

    Block Conductance (G) in Siemens
    % Block Conductance (G) Remaining
    Block Conductance (G) Delta (High vs. Low) %
    Pack Voltage

    Specifications:

    Model: HYB-1000

    Hybrid Battery System Analyzer Includes: HYB, A155 wireless communication module, CVG wireless convergence module, 4-foot battery test cables for auxiliary battery test, A156 Tool bag

    HYB-1000 KIT: Same as above plus the A087 IR
    Printer

    Application:

    Drive Test
    Test Hybrid Batteries while in-vehicle
    Test 12-volt Auxiliary battery
    Read DTC Codes
    Clear DTC Codes
    Live DataRun Chart

    Power Requirements: (6) AA Alkaline Batteries

    Display:

    HYB: 128 x 64 pixel graphics, backlit display
    CVG: LED

    Operating Temperature: 32F 120F (0C 49C)

    Test Leads: 4-foot cable with dual conductor Kelvin clamps

    Vehicles: Toyota Prius Gen I, Prius Gen II' Lexus LS600h, Honda Civic Ford Escape, Fusion, GM Malibu

    Midtronics
    MDT-HYB1000

    For printer option see HYB1000KIT below in related products
  • Price:  $1,189.00
  • Weight:  5.00
