ATD Professional Automotive Multimeter
SKU: ATD-5589
ATD-5589

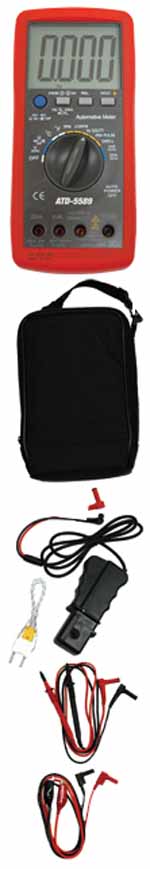

Professional Automotive Multi Meter
Large 2" LCD display with backlight for use in dark spaces. Milliseconds pulse width - measures fuel injector on-time. 18 test functions, 54 test ranges. Measures temperature in both ºF and ºC, probe included. 20 Amp test range. RPM for both conventional and DIS systems, pick-up included. Adjustable sensitivity on the RPM pick-up. Modern design, the protective holster is built-in. Fully auto-ranging with data hold. Carrying case included.
Test Ranges
ï DC Volts: 0-400mV, 4V, 40V, 400V, 1000V
• AC Volts: 0-400mV, 4V, 40V, 400V, 700V
• DC/AC Amps: 0-400uA, 4,000uA, 40mA, 400mA, 4A, 20A
• Ohms: 0-400, 4k, 40k, 400k, 4M, 40M
• Continuity: Beep
• Capacitance: 0-40nF, 400nF, 4uF, 40uF, 100uF
• Temperature: -4º F to 1400º F & -20º C to 760º C
• RPM: 0-4,000 RPM & 0-12,000 (X10 RPM)
• RPM DIS: 0-4,000 RPM & 0-6,000 (X10 RPM)
• Frequency: 0-5Hz, 50Hz, 500Hz, 5kHz, 50kHz, 500kHz, 10MHz
• Duty Cycle: 0.1% - 99.9%
• mS Pulse Width: 0-10.0 mS
• Dwell: 4 cyl, 5 cyl, 6 cyl, 8 cyl
• Diode Test: 0.3 mA Test Current
Test Functions
• AC/DC Volts
• AC/DC Amps
• AC/DC Milliamps
• Ohms
• Temperature in ºF and ºC
• RPM - DIS and Conventional
• x10 RPM Conventional & DIS
• Frequency Hz
• Duty Cycle
• ms Pulse Width
• Dwell
• Diode Test
Price: $94.67
Weight: 2.00
|
Ground Shipping.
