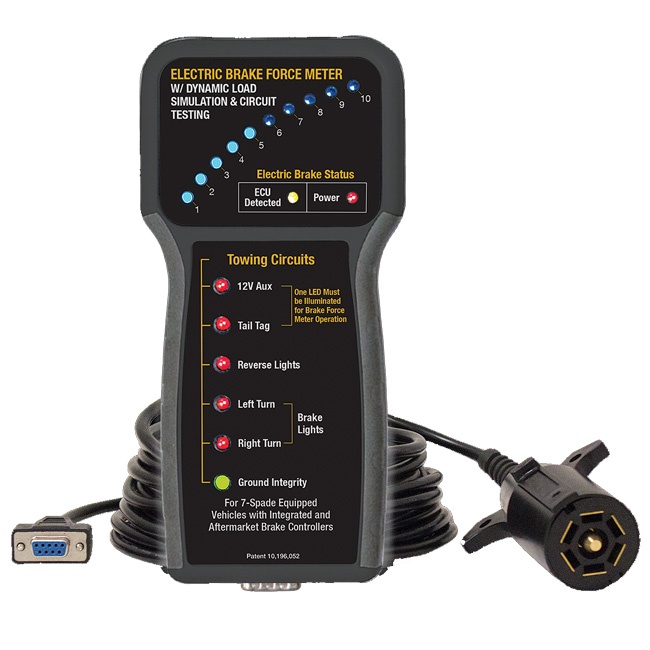

IPA 9107A Electric Brake Force Meter With Dynamic Load Simulation And Circuit Testing

The IPA 9107A Electric Brake Force Meter with Dynamic Load Simulation and Circuit Testing is designed for use on 7-way flat (spade) equipped vehicles. This new technology automatically recognizes the electronic signature of both Integrated (ITBC) and aftermarket Trailer Brake Controllers, simulates trailer load and displays real-time, brake-controller output gain and application time. It can quickly troubleshoot truck-side tow circuits, e.g., tail lights, turn signals, 12V+, reverse and ground condition and the 25-ft. cable allows for one-man, in-cab testing.

Features and Benefits:

Brake Force Meter displays real-time, brake controller output gain and timing
Quickly troubleshoots electrical circuits and ground condition; use to verify that the vehicle’s adaptive (speed/load sensitive) brake-controller output is functioning properly
For use with aftermarket and integrated brake controllers
Microprocessor controlled simulates trailer brake loads
25-ft. cable allows one-man, in-cab testing of brake controller and all truck-side tow circuits, e.g., tail lights, turn signals, electric brakes, etc.
OEM approved
