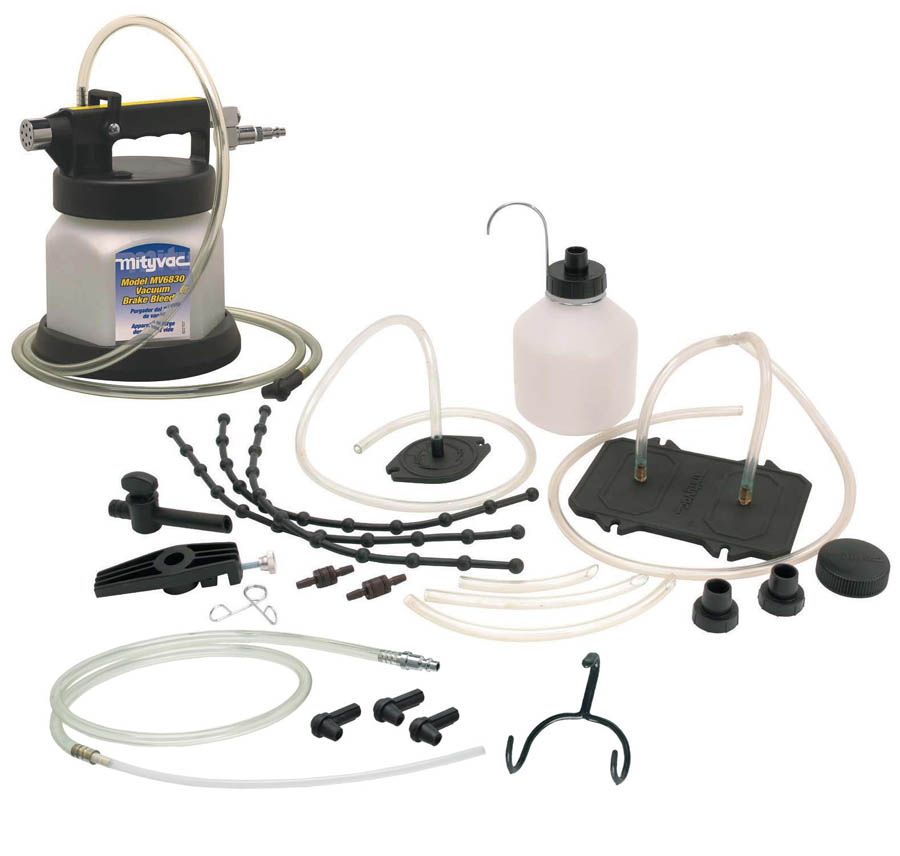

Mityvac MV6838 Master Vacuum Brake Bleeding Kit

  • Part Number: MTY-MV6838
  • Mityvac model MV6838 is the most complete vacuum brake bleeding and master cylinder refill kit available. It features our powerful MV6830 vacuum brake bleeder combined with both our MVA6836 master cylinder auto-refill kit. Everything is provided to quickly and conveniently vacuum bleed virtually every make and model of vehicle on the road.

    Features:
    Compressed air operation
    Integrated 1.9 quart (1.8 liter) capacity fluid collection reservoir
    Variable control thumb throttle
    Swivel air inlet with quick disconnect
    Automatically maintains fluid level in
    master cylinder
    Two refill kit styles ensure a fit to all makes and models of vehicles

    Includes:
    Brake bleeder
    6' (1.8 m) long bleed hose assembly
    4' (1.2 m) long fluid evacuation hose
    Molded base with screws for bench mounting
    Hanging hook
    3 Universal bleed screw adapters
    Master Auto-refill Kit (MVA6836)
    User Manual (English/French/Spanish/German)


    Bleeder Reservoir Capacity: 1.9 quarts (1.8 liters)
    Refill Reservoir Capacity: 40 oz (1.2 liters)
    Working Pressure: 60 – 150 psi (4.1 – 10.3 bar)
    Vacuum @ 90 psi (6.2 bar): 26 in. Hg (88 kPa)
    Air Consumption @ 90 psi (6.2 bar): 4.3 cfm (2.0 l/s)
    Flow Rate @ 60 psi (4.1 bar): 50 oz/min (1460 ml/min)
    @ 90 psi (6.2 bar): 70 oz/min (2100 ml/min)
    @ 150 psi (10.3 bar): 70 oz/min (2100 ml/min)
    Inlet Thread Size: 1/4" NPT
    Packaged Weight: 6.73 lbs (3.05 kg)
    Size: 15.5" wide x 10.8" tall x 8.8" deep
    (395 mm wide x 275 mm tall x 225 mm dee









  • Price:  $197.00
  • Weight:  8.00


Qty:



Free Shipping on all tools, equipment & supplies
under 50 lbs. and over $250.00 (Continental USA Only)
