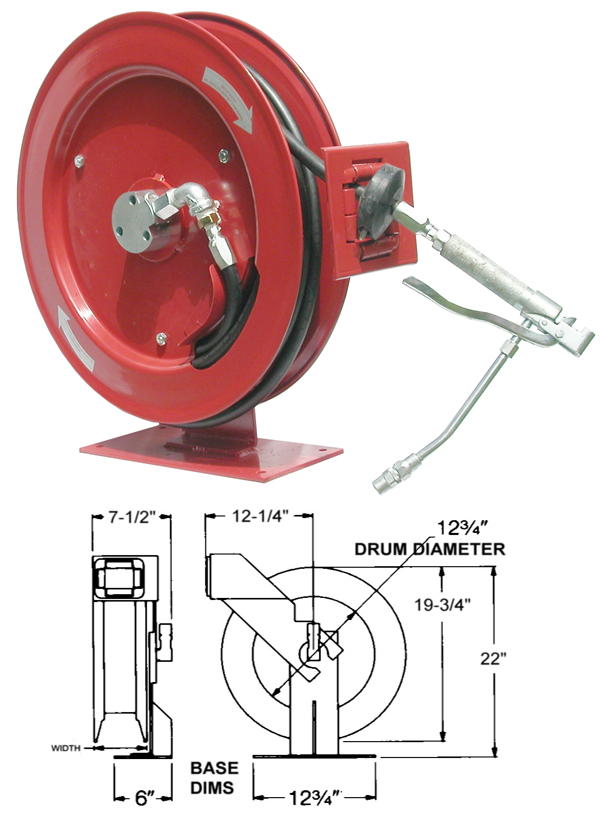

ATD 8197 Grease Reel Assembly with Heavy-Duty Reel

(Larger Image)

• Part Number: ATD-8197
• For use with Grease, oil, ATF, antifreeze, water, air
• Includes:
  • Heavy-duty basic reel with steel rollers and heavy steel mounting base
  • 40 ft. x 1/4" grease delivery hose
  • Ball Stop
  • ATD-5218 High pressure grease control valve
  • 1/2" NPT(f) reel connections

  Features:
  • Type: High Pressure - 7,500 psi
  • Inlet / Outlet: 1/2"
  • Sheath Width Outside to Outside: 6-1/2" (approx)
  • Sheath Width Inside to Inside: 6.0" (approx)
  • Sheath Depth: 4.0"
  • Diameter of Sheath: 20"
  • Base: 12-3/4" x 6"
  • Base Thickness: 1/4" plate steel with 4-3/8" dia. mounting holes for easy mounting of the base to any support column, rafter or floor
  • Length of Arm: 15"
  • Delivery hose opening has solid metal rollers with a diameter of 2-1/8" x 2-1/8"
  • Weight: 80 lbs

  Applications:
  Grease, oil, ATF, antifreeze, water, air

• Price:  $687.00
• Weight:  80.00
