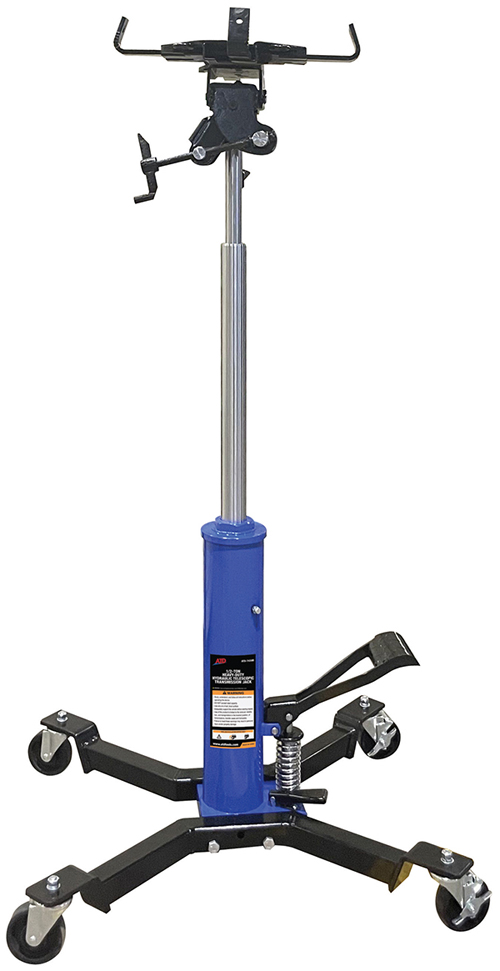

ATD 7430B 1/2 Ton Hydraulic Telescopic Transmission Jack

(Larger Image)

• Part Number: ATD-7430B
• Please call or email for freight quote
• Features:
  Extra-wide base lowers center of gravity and promotes stability
  Rugged 4" polyurethane wheels for smooth and easy movement, two with brakes
  Foot release pedal provides controlled lowering of load
  Saddle adjusts to fit most pan configurations
  Chrome-plated, two-stage rams maximize the high reach
  Nylon strap to secure transmission to jack
  Meets or exceeds ASME PASE 2019 standards

  Specifications:
  Capacity: 1/2 Ton
  Minimum Height: 37"
  Maximum Height: 77.5"
  Saddle Base: 11.4" x 11.4"
  Saddle Area Min.: 6.3" x 6.3"
  Expanded Saddle Area Max.: 18" x 18"
  Saddle Range of Motion: Front & Rear: =30°; Left & Right: =10°
  1 Year Warranty
• Price:  $529.00
• Weight:  187.00
