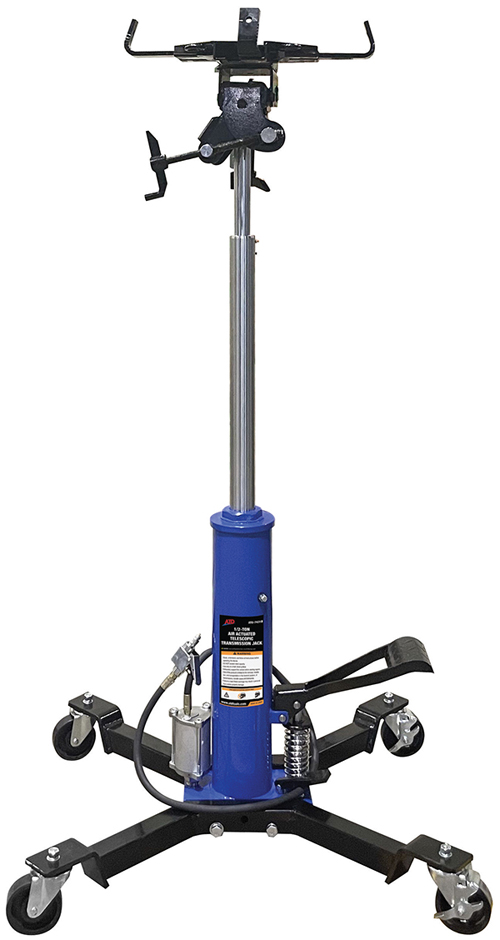

ATD 7431B Air-Actuated Hydraulic Telescopic Transmission Jacks

(Larger Image)

• Part Number: ATD-7431B
• Features:
  Extra-wide base lowers center of gravity and promotes stability
  Rugged 4" polyurethane wheels for smooth and easy movement, 2 with brakes
  Foot release pedal provides controlled lowering of load
  Adjustable saddle for quick adjustment for most pan configurations
  Chrome-plated, two-stage rams maximize the high reach
  A compact, yet powerful air motor is equipped to raise the load to the desired height efficiently, effortlessly and safely
  Nylon strap to secure transmission to jack
  Meets or exceeds ASME PASE 2019 standards

  Specifications:
  Capacity: 1/2 Ton
  Minimum Height: 37"
  Maximum Height: 77.5"
  Saddle Base: 11.4" x 11.4"
  Saddle Area Min.: 6.3" x 6.3"
  Expanded Saddle Area Max.: 18" x 18"
  Saddle Range of Motion: Front & Rear: =30°; Left & Right: =10°
  Air Pressure: 110-120 psi
  Shipping Weight: 167.5 lbs.
  1 Year Warranty

  ATD-7431B
• Price:  $766.00
• Weight:  167.00
