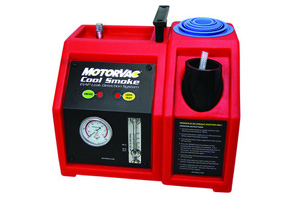

Motorvac 500 0100 Cool Smoke EVAP Leak Detection Machine

  • Part Number: MOV-500-0100
  • Free Shipping!
  • The Motorvac 500-0100 safer, healthier technology. Uses no heat to create high visibility smoke!
    Using 0.5psi pressure control, Cool Smoke has the
    highest flow rate of any smoke machine
    Instant, high performance vapor enriched with UV dye
    Ready for future EVAP Systems
    Rugged housing and built-in adapter storage
    Uses 12 volt DC with only 1 amp draw rate

    Features:
    Patented “Cold Smoke” Technology
    • Does not use a heat source to produce smoke
    • No warm up time, produces smoke instantly
    • No risk of explosion/combustion inside unit
    • Operates with shop air
    • No harmful vapors from burning of oil
    Dual Mode Leak Detection
    • Test for leaks with or without smoke
    • Verify repairs
    • Test for leaks during routine maintenance
    UV Dye Enhanced Smoke solution
    • Leaves a UV dye stain at the source of the leak,
    eliminates guessing
    Automatic Safety Shut Off
    • Shuts off the flow of air when the machine is off
    • Safe for unattended operation
    Pressure and Vacuum Gauge
    • Allows for pressure and vacuum decay testing
    On Board Storage Cabinet Design
    • Allows for convenient storage of all adapters,
    caps, cones and accessories

    Includes:
    Cone Adapter-Used to apply smoke into intake and exhaust systems

    Cap Plug Set-Used to plug internal and external openings ranging in size from 1 5/32” to 4 1/4”

    Schrader Removal/Installation Tool

    EVAP Service Port Adapter Fitting-Used to connect to OBD-II
    EVAP Systems

    Smoke Diffuser-
    Used for finding wind and water leaks

    50 Watt Lamp-Powerful white light makes it easy to find smoke
    (16 ft./4.88 M power cable w/ battery clips)

    UV Dye Enhanced Smoke Solution 200ml/6.8 oz. (PN: 400-1054)-
    Good for over 300 tests

    Optional Accessory UV Phazer NEO-(PN: 413025) High output UV LED (See Related items below)
  • Price:  $879.00
  • Weight:  19.00


Qty:

Free Shipping on all tools, equipment & supplies
that exceed $250.00 and must be under 50 lbs. (Continental USA Only)
