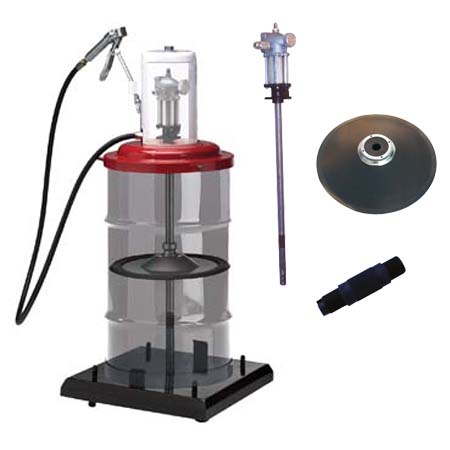

ATD Air Operated High Pressure Grease Pump

(Larger Image)

• Part Number: ATD-5217
• Fits 120 lbs. (16 gallon) drums
• Features:
  • 50:1 heavy-duty double acting pump provides uniform high-pressure
  • Upgraded pump seals provide 10-12 times longer life
  • Will dispense 40 oz. of NLGI 0-2 grease per min. @ 150 psi
  • Assures positive prime at lowest temperature
  • Fits 120 lbs. (16 gallon) drums
  • All ATD Grease Pumps are factory tested for quality & reliability

  Includes:
  • Roll-a-round base
  • Follower plate (ATD-5325)
  • Air motor cover
  • Lincoln-style air coupler
  • Control valve (ATD-5218)
  • Steel drum cover with screw downs
  • 6 ft. high-pressure hose and pump muffler
  • Grease strainer screen (ATD-5356)
  • Barrel not included
  • Package Dimensions: 39" x 19" x 8"
  • Shipping Weight: 55 lbs.

  Available Accessories & Replacement Parts:

  ATD-5217-1 - 50:1 Double Acting Grease Replacement Pump for 120 lbs. Drum Systems
  • Includes rapid disconnect air coupler, air nipple and muffler (fits all makes and models)
  • Downtube Diameter: 1"
  • Output: 80 cu.in/min. of NLGI #2 grease at 100 psi @ 70°F ambient temperature (.35 cu. in.-cycle)
  • Air Inlet: 1/8" NPT(f)
  • Lube Outlet: 1/4" NPT(f)
  • Shipping Weight: 17 lbs.

  ATD-5324 - Piston Assembly
  • Piston assembly for lower down tube on all air operated grease pumps

  ATD-5325-2 - Rubber Follower Plate 120 lbs. Drum
  • Molded Rubber for 120 lbs. drum pump
  • Diameter opening for down tube 1"

  ATD-5320 - Grease Pump Repair Kit
  • Simple repair kit for grease pumps

  ATD-5322 - Air Motor Repair Kit
  • Complete repair kit for air motors

  ATD-5323 - Downtube Repair Kit
  • Complete repair kit for downtubes

• Price:  $737.00
• Weight:  55.00
